Rotary Actuators

HLK-2200

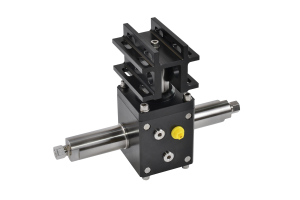

HLK-2200 - Camera Rotator

This is a derivative of the HLK-2150 Pan & Tilt and can be used as a rotational platform for cameras in the horizontal or vertical positions. As with the Pan & Tilt it incorporates the same pan sub-assembly, with a rugged rotate shaft. It can also incorporate a high-pressure water line through the slip ring assembly for use in cleaning heads. Weight 2.1 Kg in water.

HLK-2260

HLK-2260 - Heavy Duty Rotary Actuator

The HLK-2260 Heavy Duty Rotary Actuator is designed to rotate manipulator arms to enable access for inspection and positioning tasks. The double rack and pinion ensures a very robust arrangement, which has the minimum of backlash. Various mounting plates can be fitted to suit different mounting styles. Weight in water is 5.4 Kg.

HLK-2290

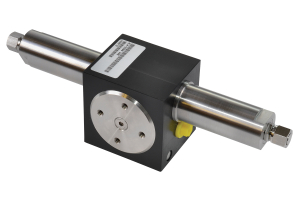

HLK-2290 - Compact Camera Rotator

The HLK-2290 Compact Camera Rotator has been designed for use with the new, modern, lightweight cameras. It is only 75 x 70 x 230 mm overall with a rotate of 360°. Constructed from plastic and stainless steel, it only weighs 1.5 Kg in water.

HLK-22100

HLK-22100 - Inspection Rotary Actuator

The HLK 22100 rotary actuator is designed to rotate manipulator arms to enable a rotating access for inspection and positioning tasks.

The rotate function is achieved using a hydraulic motor driven worm and wheel.
